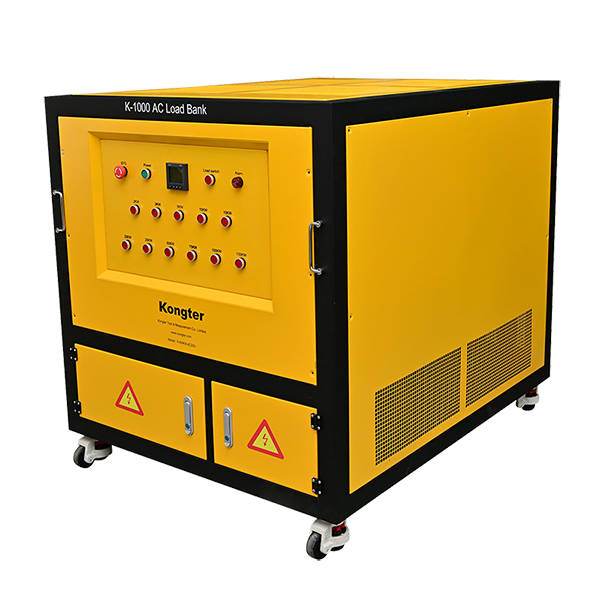

K-1000 AC Load Bank (Resistive/Capacitive)

A RCD (resistive/capacitive) generator load bank is non-linear load bank. The electronic and non-linear loads simulated by capacitive load banks are typical of the Telecommunications, Computer or Uninterruptible Power Supply (UPS) Industries.

Test of output and power quality for power supply is significant to ensure that power supply will work in critical situation to support loads without any pollution to power grid. The ideal solution is combination of both resistive and capacitive elements in one load bank package.


Below is specification for some common models, we build more than these. Please contact Kongter to specify your customized model if you could not find the same model below.

RatedCapacity:Resistive: 10kWResistive: 30kWResistive: 60kW
Capacitive: 10kVARCapacitive: 30kVARCapacitive: 60kVAR
Customized solutions available upon request.
Rated Voltage:1P: AC240V3P AC415V, or units can be designated by customer
Customized solutions available upon request.
Maximum current:96A1P: 96A1P: 192A
3P: 288A3P: 576A
Frequency:50/60 Hz
Minimum Load Step:100W, 100VAR100W, 100VAR100W, 100VAR
Customized solutions available upon request.
Digital Meter:Voltage, Current, Frequency, Power and PF displayed by digital meter
Protection:Overheating alarm, Short circuit protection, Overheating protection, Fan overloading protection, Emergency stop button.
All protections can be configured optionally
Control Mode:Manual control by MCBs or push buttons
Air Flow:Horizontal, Force-air cooling


  • Compact load bank unit with user friendly control panel.
  • Effectively applied for full load test of generator set, UPS and other AC power systems.
  • Sectionalized control of input power enables any customized setting of load step and time.
  • Real-time display of test current, voltage, power, power factor, time and frequency.
  • Alternative control modes by local control of circuit breaker/push button or PC control.
  • PC software com protocol is open for data integration to customer’s IT system.
  • Emergency stop button for quick termination of AC load test.
  • Protection upon over load, over voltage, over temperature, short circuit and so on.
  • It adopts latest load element with high density power, safer and more durable.
  • Axial flow fans with big blast capacity for quick ventilation with low noise.
  • Many more customized models (resistive, inductive, capacitive or combined) available upon request
  • Battery bank system
  • Energy storage system
  • Energy meter loop load test
  • Datacenter rack heat simulating
  • PV system Inverter anti-islanding test
  • Voltage regulator, rectifier aging load test
  • Genset, UPS load bank commission testing
  • AC/DC power supply, power source commission acceptance test

Standard Protections:

  • Emergency stop operation: one key stop loading
  • Over temperature alarm/protection: alarm & remove load
  • Fan interlock protection: loading available after fan activated
  • Over voltage protection: alarm & remove load

Optional Protections:

  • Blower thermal overload protection: alarm & remove load
  • Lack of air volume protection: alarm & remove load
  • Short circuit protection by fuse(over current protection)
  • Phase sequence protection(for fans with 3 phase voltage)
  • Air inlet & outlet temperature monitoring
  • Or other functions as requested

Control Modes:
Two control modes available for Kongter’s series AC load banks via local panel and PC software.

  • Local control mode by contactor or circuit breaker as requested by customer
  • PC software control (optional)
    Communication protocol of PC software is open to users for integration to their own system.
