Capacitive AC load bank, Customized AC load, RLC load bank

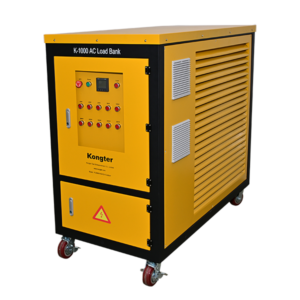

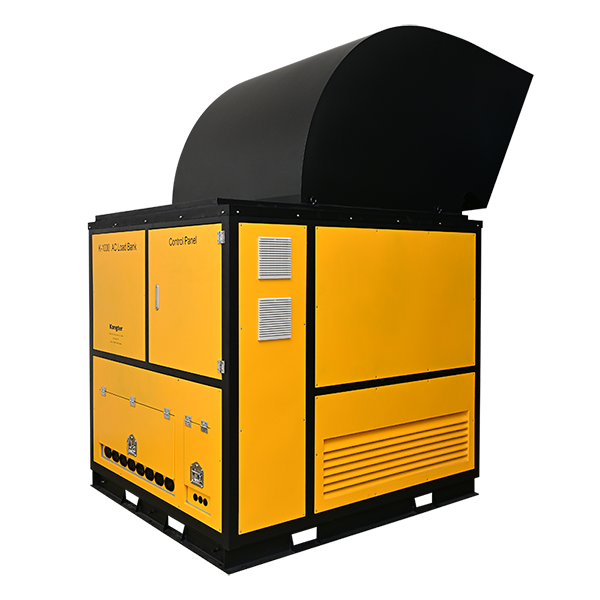

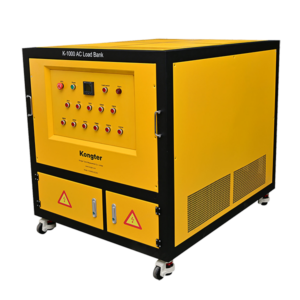

K-1000 AC Load Bank(Resistive/Reactive)

Resistive/reactive load banks are great choices for testing turbines, switchgear, rotary UPS, generators and UPS systems. They can also be used for integrated system testing of utility substation protection systems, particularly for more complex relays like distance, directional overcurrent, power directional and others. A resistive/reactive inductive and/or capacitive load is often required to test solar inverters to ensure solar panels can be stopped from producing electricity in the event of a power outage.

The resistive/reactive combination load banks are used to test the engine generator set at its rated power factor. In most cases this is 0.8 power factor.

Description

Specification

Below is specification for some common models, we build more than these. Please contact Kongter to specify your customized model if you could not find the same model below.

Model:	RLC-30kW-AC480V	RLC-60kW-AC480V	RLC-100kW-AC480V
Capacity:	Resistive load: 30kW	Resistive load: 60kW	Resistive load: 100kW
	Inductive load: 30kVAR	Inductive load: 60kVAR	Inductive load: 100kVAR
	Capacitive load: 30kVAR	Capacitive load: 60kVAR	Capacitive load: 100kVAR
	Or customer defined
Rated Voltage:	Rated voltage Three Phase 480VAC
	(or customized as per request)
Frequency:	50Hz and 60Hz are available
PF:	0.1-1.0
Min. Load Step:	100W, 100VAR	1kW, 1kVAR	1kW, 1kVAR
	Or customer defined

Advantages

Compact AC load bank unit with user friendly control panel.
Effectively applied for full load test of generator set, UPS and other AC power systems.
Sectionalized control of input power enables any customized setting of load step and time.
Real-time display of test current, voltage, power, power factor, time and frequency.
Alternative control modes by local control of circuit breaker/push button or PC control.
PC software com protocol is open for data integration to customer’s IT system.
Emergency stop button for quick termination of AC load test.
Protection upon over load, over voltage, over temperature, short circuit and so on.
It adopts latest load element with high density power, safer and more durable.
Axial flow fans with big blast capacity for quick ventilation with low noise.
Many more customized models (resistive, inductive, capacitive or combined) available upon request

Application

Battery bank system
Energy storage system
Energy meter loop load test
Datacenter rack heat simulating
PV system Inverter anti-islanding test
Voltage regulator, rectifier aging load test
Genset, UPS load bank commission testing
AC/DC power supply, power source commission acceptance test

Protection & Control

Standard Protections:

Emergency stop operation: one key stop loading
Over temperature alarm/protection: alarm & remove load
Fan interlock protection: loading available after fan activated
Over voltage protection: alarm & remove load

Optional Protections:

Blower thermal overload protection: alarm & remove load
Lack of air volume protection: alarm & remove load
Short circuit protection by fuse(over current protection)
Phase sequence protection(for fans with 3 phase voltage)
Air inlet & outlet temperature monitoring
Or other functions as requested

Control Modes:
Two control modes available for Kongter’s series AC load banks via local panel and PC software.

Local control mode by contactor or circuit breaker as requested by customer
PC software control (optional)
Communication protocol of PC software is open to users for integration to their own system.
